Why Thermal Imaging Is Key to Detecting Moisture in Your Property

Why Hidden Moisture Is More Dangerous Than What You Can See

Hidden moisture inside walls, ceilings, and floors is one of the most damaging issues a home can face, yet it often goes unnoticed. Without visible signs or obvious odors, water can quietly weaken structures, feed mold growth, and degrade indoor air quality, leaving homeowners unaware of the threat until serious damage occurs.

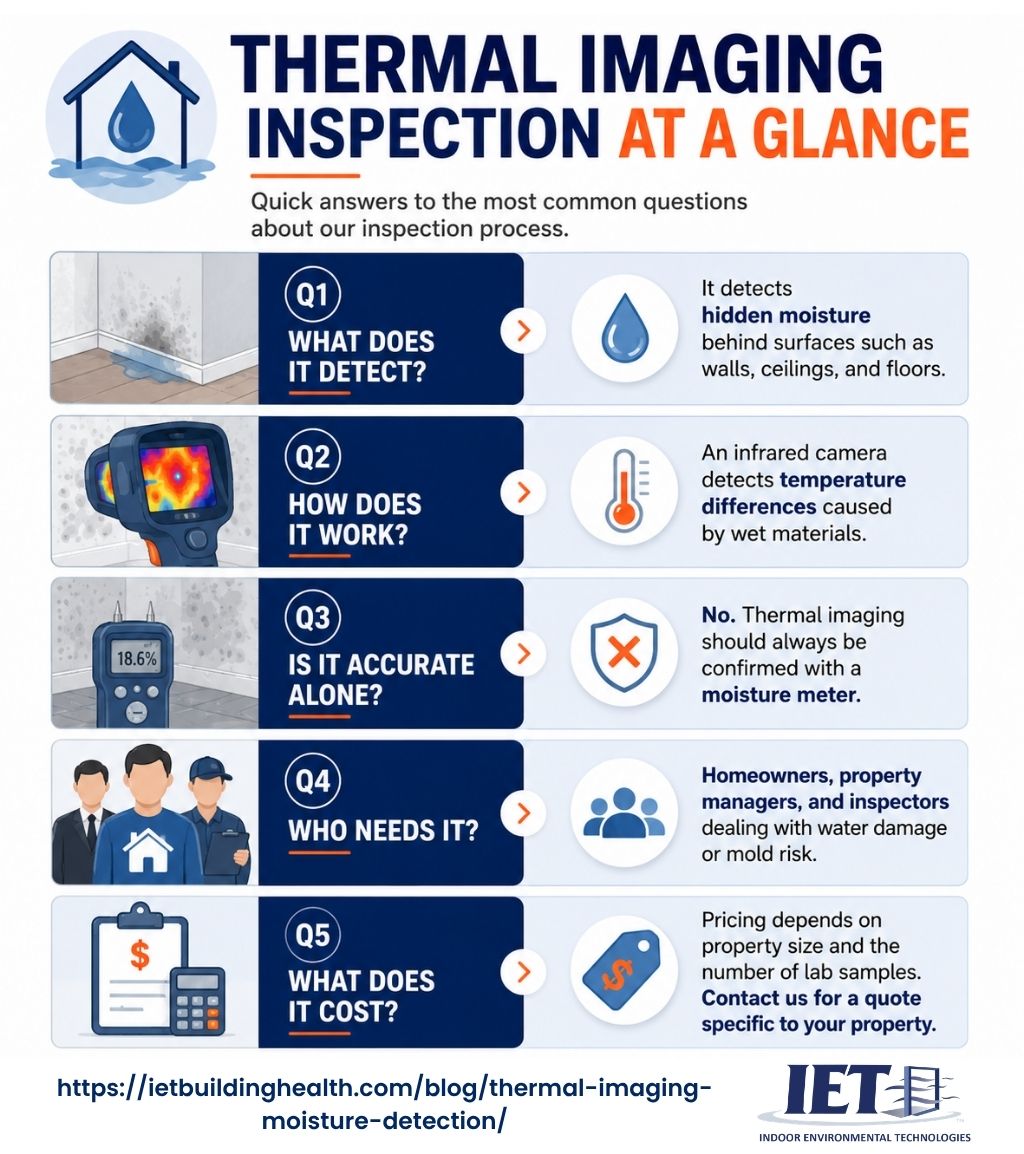

Here’s what you need to know at a glance:

The danger grows over time. Water intrusion can persist for weeks or months before a stain or musty smell appears, by which point the damage is often far worse than expected. Across Tampa Bay and the Gulf Coast, high humidity, frequent heavy rains, and hurricane season leave homes especially vulnerable to this silent problem, raising the risk of mold, structural decay, and costly repairs.

Thermal imaging moisture detection catches this early. Infrared cameras map the temperature differences between wet and dry materials, so homeowners and property managers can find problem areas without cutting into walls — and stop structural damage and mold before they take hold.

I’m Matthew Fitzgerald, owner of Indoor Environmental Technologies (IET) — an independent environmental consulting firm serving the Tampa Bay area since 1992. My team uses thermal imaging moisture detection as part of a science-backed, lab-verified inspection process to find what conventional visual inspections miss. In the sections below, I’ll walk you through exactly how the technology works, where it falls short, and how professional-grade assessments protect your property and your health.

This diagnostic brief outlines the thermodynamic physics of infrared sub-surface detection, evaluates thermal delta-T testing criteria, and charts structural moisture mapping. For active commercial property scanning, high-occupancy corporate assessments, or industrial HVAC hygiene tracing, review our specialized commercial indoor air quality testing options. For single-family residential thermal mapping, target leak tracing, or home mold evaluation, explore our certified residential mold inspection and air testing protocols.

The Science of Thermal Imaging Moisture Detection

To understand how we find hidden leaks, start with a common myth: infrared cameras don’t see through walls. They act as highly sensitive surface-temperature sensors, reading heat at the surface rather than looking into the structure.

Every object with a temperature above absolute zero emits infrared radiation. Thermal imaging cameras detect this radiation in the long-infrared range of the electromagnetic spectrum and convert it into a visual map of surface temperatures.

When moisture invades a building material, it alters that material’s thermal properties in two primary ways:

1. Heat Capacitance: Water has a very high specific heat capacity. This means wet drywall, wood, or concrete takes much longer to heat up or cool down than dry materials. During transitional times of day (like when the sun goes down and a building cools), wet areas will hold onto their temperature longer, creating a distinct thermal signature.
2. Evaporative Cooling: As moisture evaporates from a surface, it draws heat away, cooling that specific spot down. Evaporative cooling makes wet spots read as distinct cool anomalies — usually blue or purple on a standard thermal palette — against the warmer dry materials around them.

Academic research on Surface moisture detection using thermal imaging and computer vision demonstrates that thermal sensors can reliably capture these moisture-driven temperature gradients. However, translating these surface temperature differences into an accurate map of structural water damage requires a deep understanding of Building Science and thermodynamic principles.

How Thermal Imaging Moisture Detection Works

When we conduct a Water Damage Assessment, we scan the interior envelope of your property to map out these thermal anomalies. The camera reads the surface’s emissivity — how efficiently it emits infrared energy — and turns that into a detailed color image.

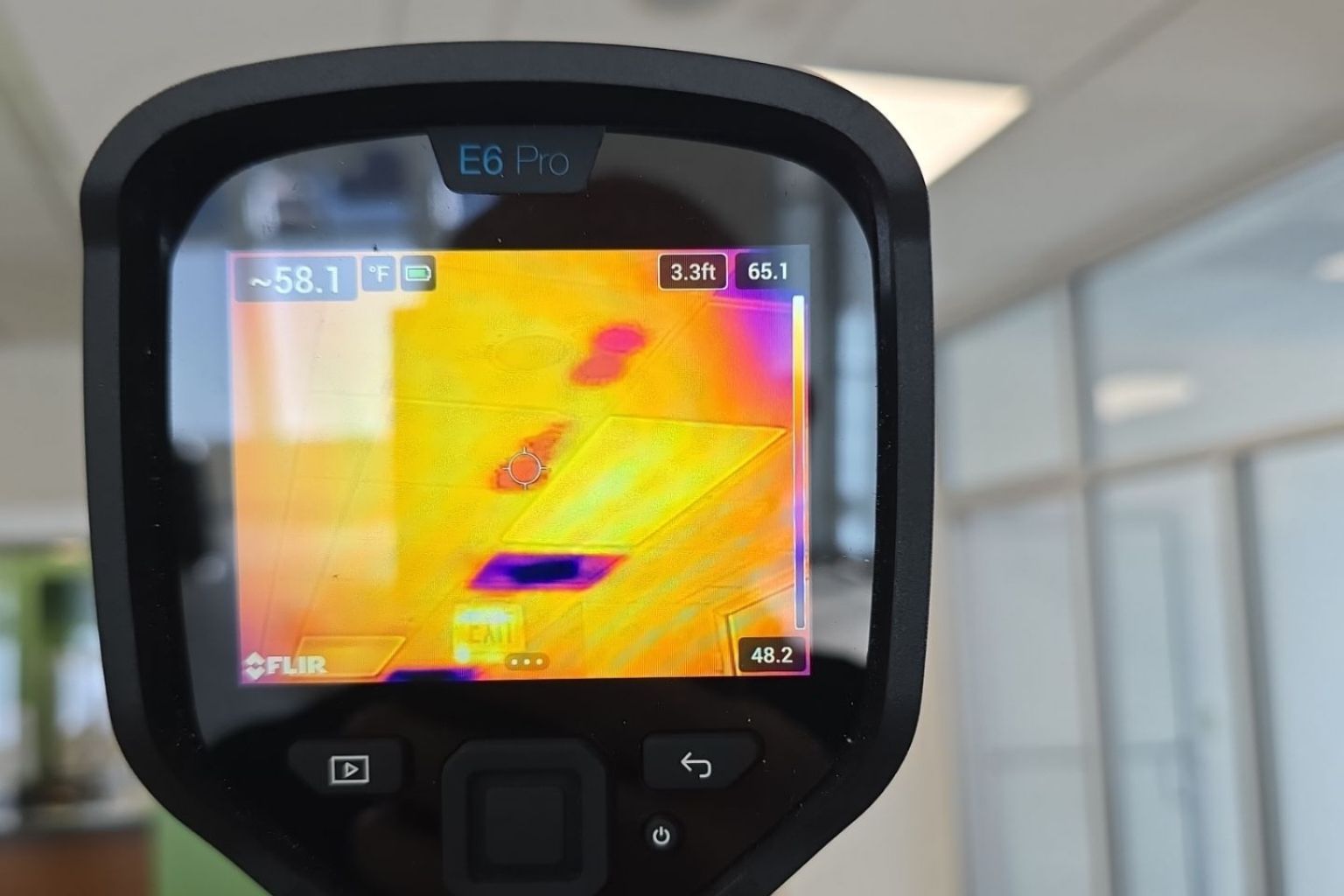

Because wet building materials are almost always cooler than dry ones due to evaporative cooling, they present themselves as dark, cold shapes. A plumbing leak behind a bathroom wall might show up as a dark, weeping pattern originating from a pipe joint. An air conditioning condensation leak might present as a cold pooling pattern on a ceiling.

By mapping these temperature gradients, we can trace the path of water downstream from its source. For example, a roofline leak might show a continuous cold pattern traveling down an exterior wall stud, pooling at the baseboards, and spreading across the floor. This lets us pinpoint the exact entry point without tearing down drywall.

Thermal Imaging Moisture Detection vs. Traditional Meters

Thermal imaging and traditional moisture meters work together. The camera finds where to look; the meter confirms what’s actually wet.

Traditional moisture meters come in two main styles:

• Pin-Type Meters: These measure electrical resistance between two metallic pins inserted directly into the material. They provide highly accurate, quantitative data, but they are invasive and only test the tiny area between the pins.
• Pinless Meters: These use radio frequencies to scan for moisture non-destructively up to a depth of about 0.75 inches. They are great for quick checks but require direct surface contact.

Thermal imaging, on the other hand, allows us to scan massive areas—like an entire ceiling or wall—in seconds without touching a single surface. Once the thermal camera identifies a suspected cold anomaly, we use pinless and pin-type meters to verify whether that cold spot is actually wet, or if it is just an insulation void or an air draft.

Advanced professional systems, such as the FLIR MR277 Building Inspection System, combine thermal imaging cameras with built-in moisture meters and hygrometers in a single tool. This integration allows our inspectors to instantly cross-reference a thermal anomaly with a physical moisture reading, speeding up the diagnostic process.

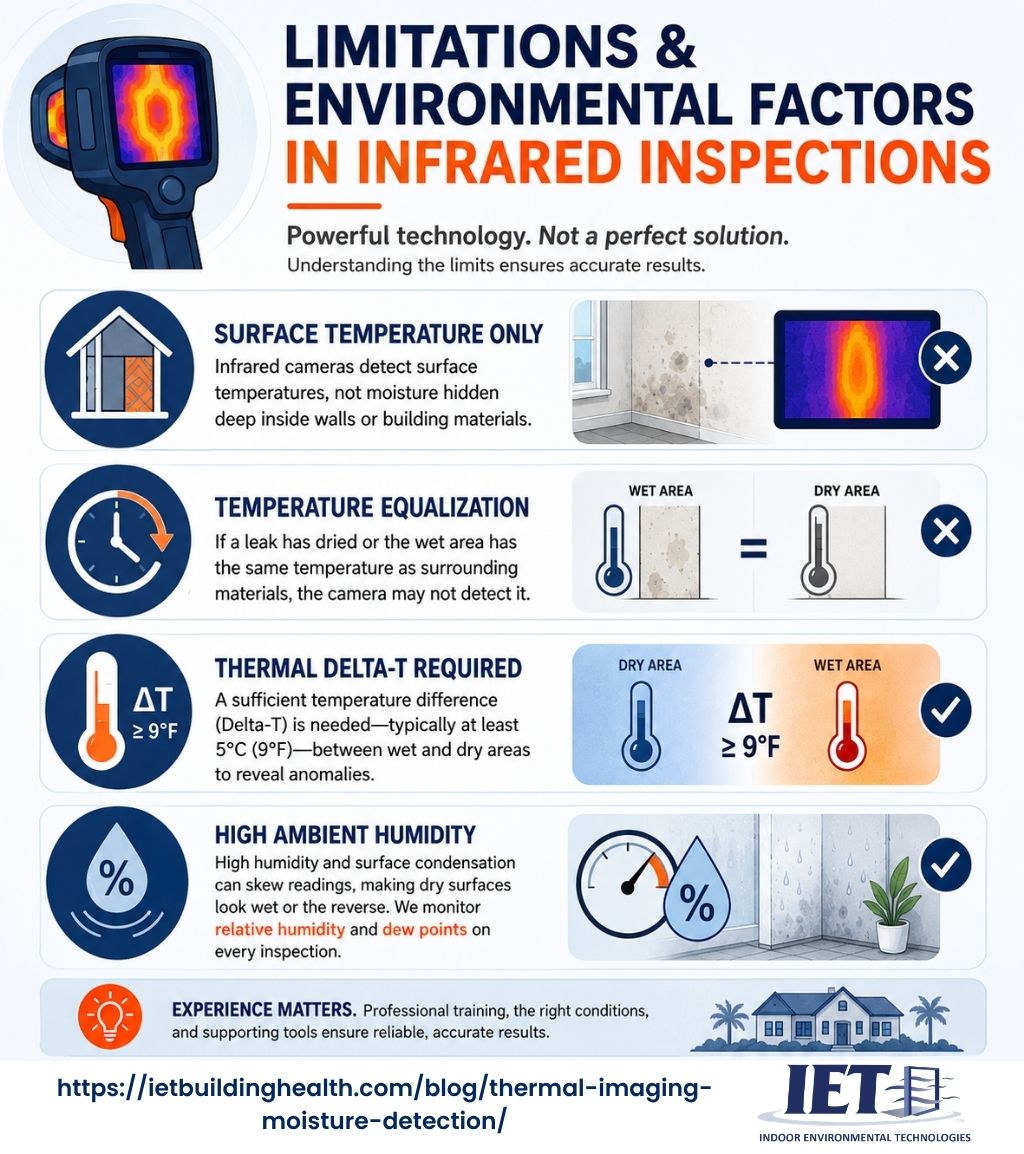

Limitations and Environmental Factors in Infrared Inspections

While thermal imaging is an incredibly powerful tool, it is not magic. It has strict limitations that require professional training to navigate.

• Surface Temperature Only: An infrared camera cannot detect moisture deep inside a wall if that moisture has not yet affected the surface temperature of the drywall or plaster.
• Temperature Equalization: If a leak has dried, or if the wet material has reached the exact same temperature as the surrounding dry materials, the thermal camera won’t see it.
• Thermal Delta-T Requirements: For a thermal camera to register an anomaly, there must be a sufficient temperature difference (Delta-T)—typically at least 5°C (9°F)—between the wet area and the dry area. If the indoor and outdoor temperatures are identical, we sometimes have to artificially introduce heat or cool air to make the anomalies visible.
• High Ambient Humidity: In humid Gulf Coast conditions, surface condensation can skew thermal readings, making dry surfaces look wet or the reverse. That’s why we track relative humidity and dew points throughout every inspection.

How Professional Inspections Make the Invisible Visible

Undetected moisture damages wood and drywall, and it feeds mold. In Florida’s humid climate, the window is short: EPA’s guidance is that drying wet or damp materials within 24 to 48 hours will, in most cases, prevent mold from growing. The risk climbs sharply after extreme weather. Wind-driven rain pushes deep into building envelopes, and prolonged power outages shut down air conditioning, leaving properties warm, humid, and wet. When materials stay wet past that window, mold growth becomes the likely outcome.

A professional Mold Inspection combines thermal imaging with air and surface sampling to identify these hidden environmental threats before they impact your family’s health. If you are experiencing unexplained respiratory symptoms, skin rashes, or musty odors, hidden moisture is the likely culprit.

The IET Service Process: From Booking to Reporting

1. Booking & Consultation: When you contact our St. Petersburg office, we discuss your specific concerns (musty smells, recent water leaks, health symptoms) to tailor our inspection plan.
2. On-Site Assessment: Our certified inspectors arrive to evaluate your property. We look at the building as an interconnected system, assessing how ventilation, pressure, and structural design affect your indoor air.
3. Thermal Scanning: We perform a comprehensive thermal scan of the suspected areas, mapping out any temperature anomalies that suggest hidden water.
4. Moisture Verification: Every thermal anomaly is physically tested using professional pin and pinless moisture meters to confirm the presence of moisture.
5. Air & Surface Sampling: If moisture or mold is suspected, we collect air, dust, or surface samples to identify specific mold species and spore counts.
6. Lab Verification & Reporting: Samples are analyzed by an accredited, independent laboratory. We compile these findings into a comprehensive, easy-to-read report detailing our findings, the root cause of the moisture, and a clear protocol for how to fix it. We also offer Post Remediation Verification to ensure your contractor did the job right.

Why Independent Science-Based Assessments Matter

The most important asset we offer our clients is our independence. Indoor Environmental Technologies is strictly an inspection and testing firm. We do not perform mold remediation or water damage repairs.

This is a critical distinction. If a company offers both testing and remediation, they have a direct financial incentive to find a problem. Our only incentive is to find the truth. We provide unbiased, science-backed assessments that you can trust.

We’re upfront about pricing. A residential assessment is quoted on property size and the number of lab samples required, so you know the cost before we begin.

Key Takeaways:

• Infrared Cameras Read Heat, Not Liquid: Thermal imaging tools are surface temperature sensors that detect minute temperature changes caused by moisture; they do not look “through” solid structures directly.
• Evaporative Cooling Creates Anomalies: When hidden moisture moves to a surface and evaporates, it draws heat away, causing wet zones to appear as distinct cool anomalies on thermal displays.
• Thermal Capacitance Tracks Latent Moisture: Water retains thermal energy significantly longer than dry gypsum or wood framing, leaving a noticeable structural heat lag during transitional times of the day.
• Cameras Require Delta-T Differences: For an infrared camera to catch an anomaly, a minimum temperature variance (Delta-T) of roughly 5°C (9°F) must exist between the wet and dry building materials.
• Meters Confirm What Thermal Scans Locate: Thermal anomalies only pinpoint target locations; inspectors must always verify findings with a physical pin or pinless moisture meter to prevent false positives.

Painting over a drywall stain or ignoring an unexplained cold spot lets a hidden leak rot your framing and degrade your air quality. Thermal imaging, moisture verification, and independent lab testing catch the problem before it becomes an expensive repair. When you want objective, third-party data on your property, contact our environmental testing team to schedule an on-site evaluation. Schedule an inspection.
